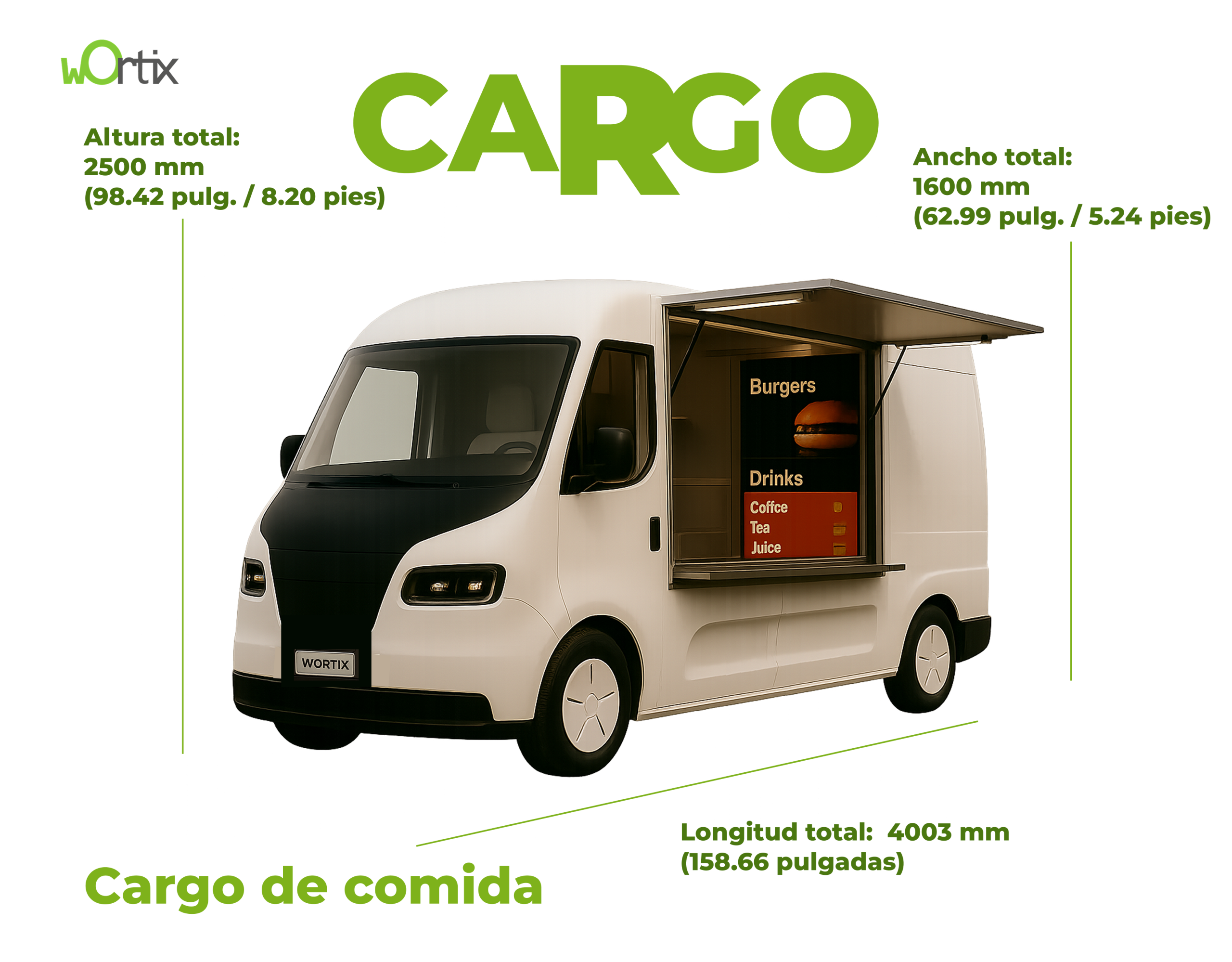

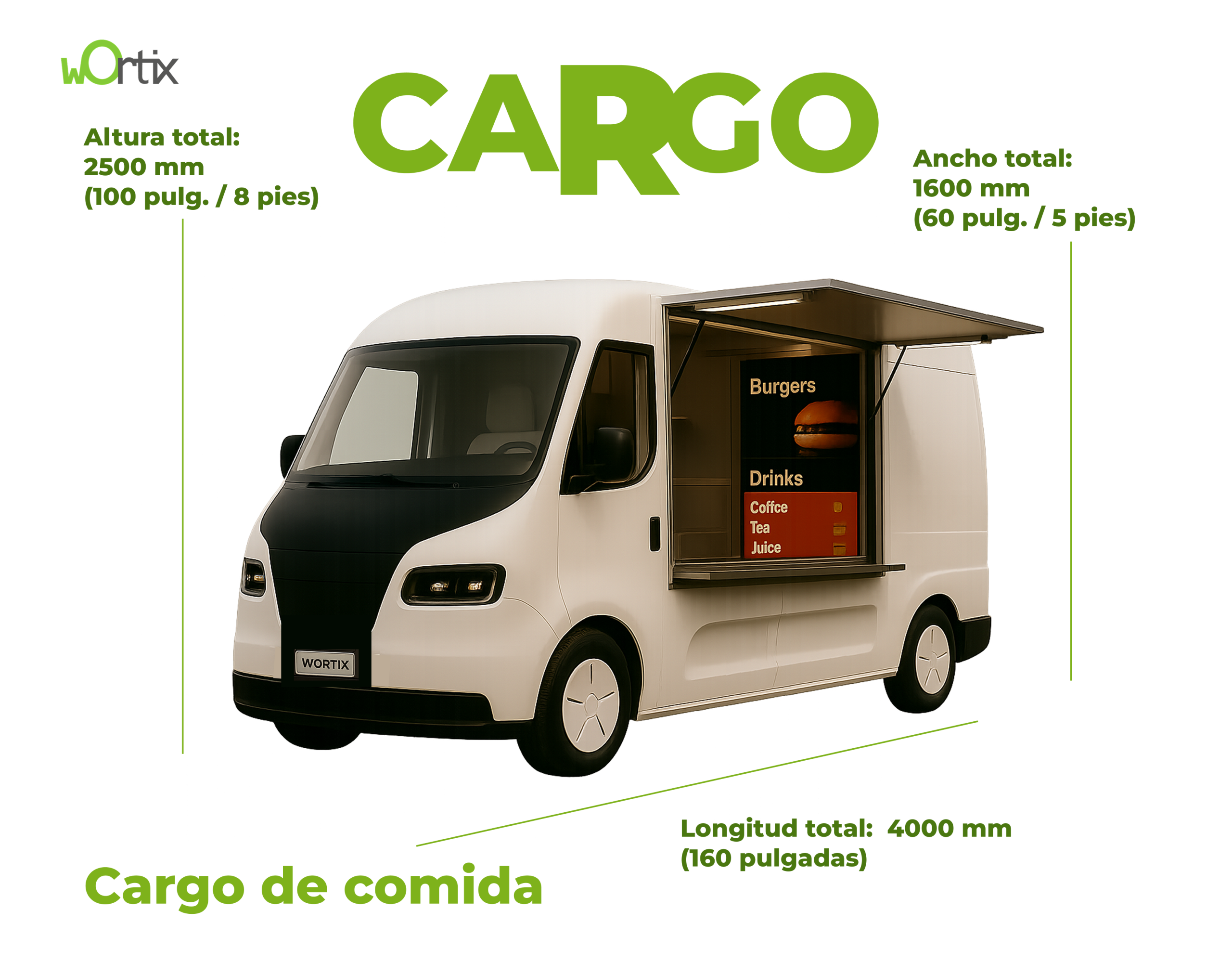

Food Truck
Power your culinary vision with zero emissions and maximum efficiency. Our high-capacity, modular platform lets you reach new customers and operate profitably in any urban hotspot.
Technical specifications
General characteristics
Motor:
5000W
Cabin:
59.055 inch / 4.92 ft
Rear:
Wheel drive
Payload:
1010 kg
Range:
80 Km/ 100 Km
Cargo space:
59.05 x 77.95 x 70.86 inch
Maximum speed: 35 Km/h
35 Km/h
Gross weight:
740 kg
Technical specifications
Bodywork
Reverse:
Yes
Digital dashboard:
Yes
Headlights:
LED
Taillights:
LED
Seats:
2
Technical specifications
Chassis
Tire:
145/70 - R12
Suspension:
Shock absorbers
Security
Airbags:
2
Seat belts:
2
Infotainment system:
Touchscreen
Sound system:
2 Speakers
100+ km (included by default with the vehicle)
Manufacturer / Brand: COMPA
Nominal voltage: 72V (3.6V * 20)
Minimum discharge voltage: 64 V
Maximum charging voltage: 84 V
Total energy: 6.48 kWh
Energy efficiency: 90%
200 Km+ Total energy: 12.96 kWh
Manufacturer / Brand: COMPA
Nominal voltage: 72V (3.6V * 20)
Minimum discharge voltage: 64 V
Maximum charging voltage: 84 V
Total energy: 6.48 kWh
Energy efficiency: 90%
300 Km+ Total energy: 19.44 kWh
Manufacturer / Brand: COMPA
Nominal voltage: 72V (3.6V * 20)
Minimum discharge voltage: 64 V
Maximum charging voltage: 84 V
Total energy: 6.48 kWh
Energy efficiency: 90%

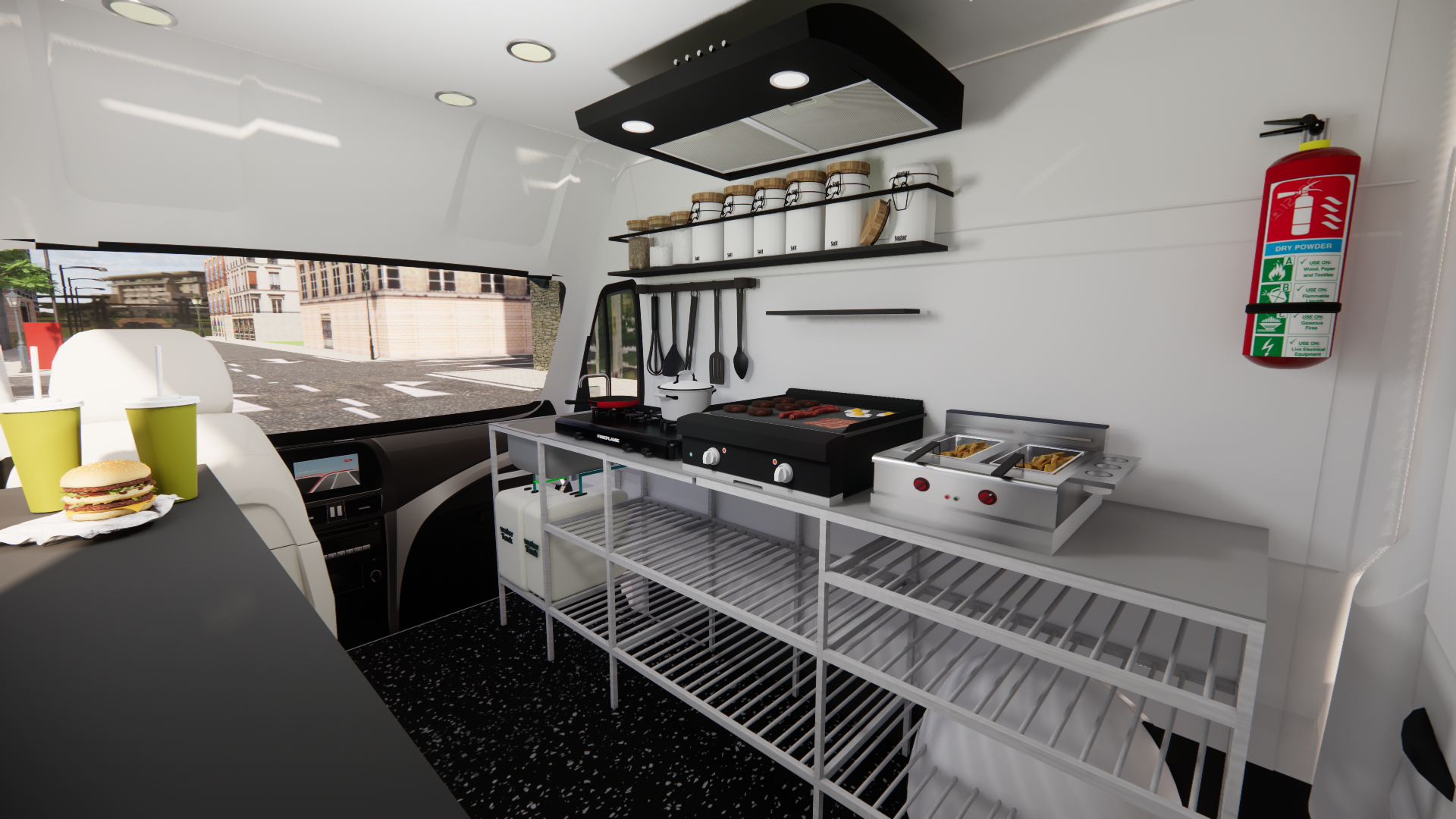

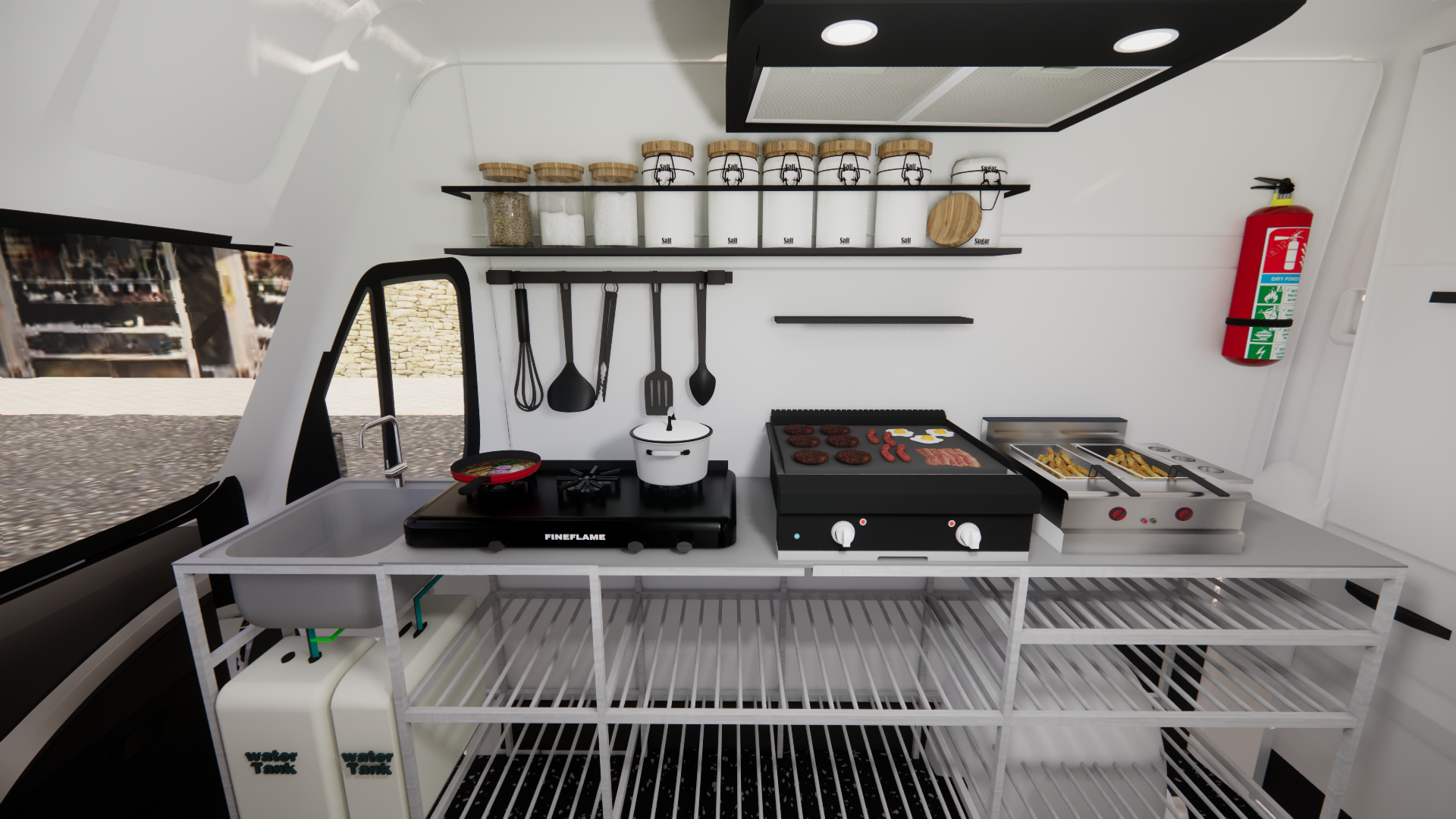

The Wortix Ev Food Truck includes:

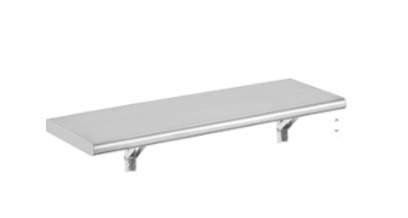

Standard Work Table:
10-pound propane tank holder, propane tank holder for RVs, trailers, trucks, Jeeps. 9 inches in diameter.

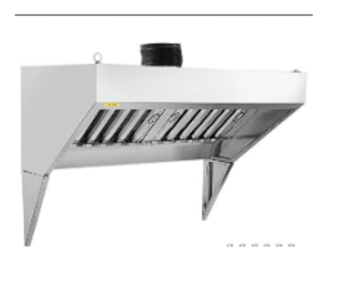

Exhaust hood with ducts and filters:
Wall-mounted exhaust hood made of 304 stainless steel sheet, 18-gauge cornice, 20-gauge body. With three labyrinth filters and a hood lamp (extractor fan and duct not included). Overall dimensions: 1.55 x 0.60 x 0.50.

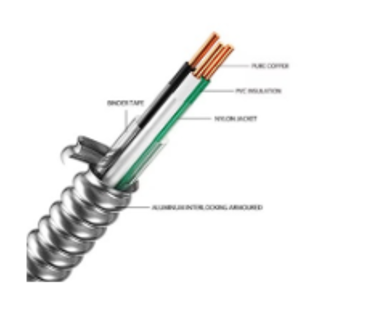

UL Cable:
12 AWG UL CUL listed electrical cable with metal-clad aluminum armor, stranded or solid. 12/2 MC cable. 600 V nominal voltage. 1 foot.
CSA-certified gas griddle:
Cooking station consisting of a single 0.50 cm. 10-gauge gas griddle, a 0.35 cm basket fryer, 2 aluminum burners, and solid square iron grates.

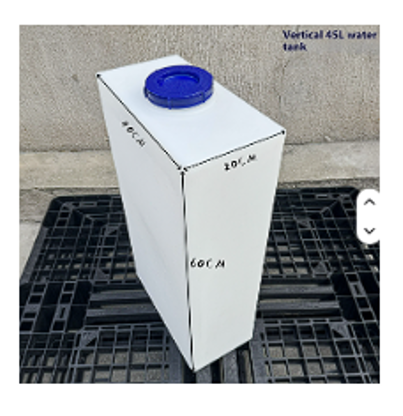

45L Vertical Water Tank:
$400 \times 200 \times 700 \text{ mm}$ $15 \times 7 \times 27 \text{ inches}$

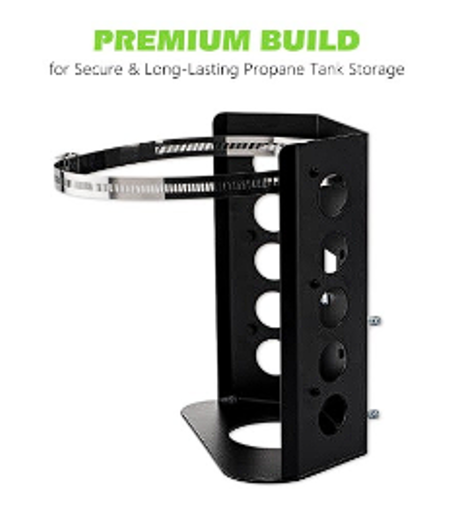

Gas Tank Rack:
10-pound propane tank holder, propane tank holder for RVs, trailers, trucks, Jeeps. 9 inches in diameter.

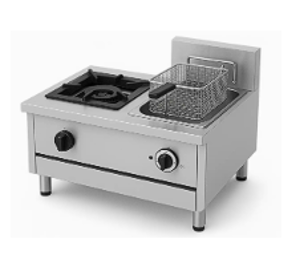

Gas fryer with SIT valve and temperature controller (independent):
Gas fryer with SIT valve and temperature controller (independent). CSA-certified gas burner:1-burner CSA-certified gas burner.

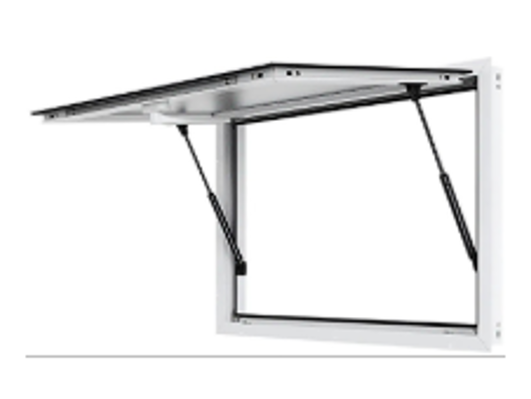

Window With Mosquito Net:
Sliding glass window with mosquito screen $1.6 \text{ cm} \times 63.5 \text{ cm}$

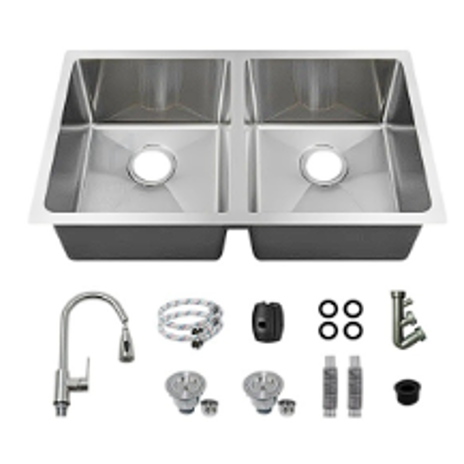

Double-basin sink:
Double-basket sink made of 304-type stainless steel sheet. The top and sinks measure $0.40 \times 0.40 \times 0.20$. 18-gauge, 18-gauge frame with aluminum levelers. Overall dimensions: $1.40 \times 0.60 \times 0.90$.
American standard galvanized pipe gas line:
Open storage cabinet made of 430-type stainless steel sheet, 20-gauge body and same-size legs with aluminum leveling feet. Overall dimensions: $1.20 \times 0.40 \times 0.90$.
Food Truck EV applications
Electric platform with generous payload capacity, perfect for culinary ventures and food sales in urban areas.
Function: Flexible mobile kitchen for serving in parks, events, or commercial zones with emission restrictions.
Advantage: Quiet operation, zero emissions, and reduced operating costs, meeting last-mile logistics needs
You can also add these accessories:
Generator:
900W, 110V/60Hz, 2 HP motor PREDATOR 2-stroke portable gasoline generator – P100
Worktop Freezer:
Size (mm): $580 \times 520 \times 834 \text{ mm}$. $22 \times 20 \times 32 \text{ inches}$. 67W. 108L.
Mini-Split:
New 24V automatic split-type parking air conditioner with R134a refrigerant
Microwave:
7-foot. 20-liter. stainless steel mirrored microwave oven. 700W. Shtark SHT20L01
Blender:
MERION MER+PBJ+1 professional blender. 2 liters, plastic jar. 15 speeds, 6 blades. red
Pre-order yours.
today and we'll start preparing it
You'll pay for it when you receive it. We do require a minimum
reservation deposit, which will be included in your final payment.
Food Truck
Our Compa EV Food Truck is designed to bring your kitchen to the streets in the most sustainable way possible. With a focus on urban mobility and efficiency, this configuration is perfect for culinary entrepreneurs.
Modular Platform Design:
We use a flexible chassis that adapts perfectly to the integration of kitchens, refrigeration units, and service windows, allowing you to customize your workspace.
Intelligent Energy Management:
Equipped with high-capacity lithium-ion batteries, we guarantee long-lasting, uninterrupted power for all your appliances, from refrigerators to griddles.
Urban Mobility Without Restrictions:
Its compact size and optimized maneuverability make it easy to operate in urban centers and at events. What's more, it's compatible with the public charging network so you're always ready to serve.
Customization and Style:
We offer modular interiors so you can design a layout that adapts to your menu and brand, making your food truck an extension of your identity.
